Netafim Techline CV Dripper Pipe

Netafim 16mm Techline CV Dripper pipe

on-surface or sub-surface pressure compensating continuous self-cleaning dripperline

TECHLINE™ CV

PRESSURE-COMPENSATING, CONTINUOUSLY SELF-CLEANING DRIPPER CHECK VALVE ANTI-DRAIN (CV)

APPLICATIONS

• Sub-surface and on-surface installation.
• Slopes.
• High wind areas.
• Areas subject to vandalism.

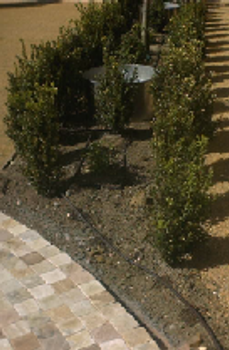

• Planting areas.
• Curved, narrow and unshaped planting areas.
• Turf, shrubs, trees and flowers.
• Rooftop gardens.
• Green walls.
• Sports turf, tennis courts and golf courses.
• High traffic/high liability areas.
• Raised planters.

FEATURES AND BENEFITS

PRESSURE COMPENSATING

• Precise and equal amounts of water are delivered over a broad pressure range.
• 100 % uniformity of water and nutrients distribution along the laterals.

CONTINUOUS SELF-FLUSHING DRIPPER DESIGN

• Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation.

0.14 BAR CHECK VALVE IN EACH DRIPPER

• All drippers turn on and off at the same time, maximizing balance of application. System holds back up to 1.4 m of water (elevation change). No low emitter drainage, great on slopes. Delivers more precise watering.

ANTI-SIPHON MECHANISM

• Anti-Siphon mechanism prevents contaminants from being drawn into the dripper.

UNIQUE DRIPPER DESIGN WITH

• Physical root barrier: better protection against root intrusion without reliance on chemicals.
• Largest filter in each dripper.
• Widest water passages within the dripper.
• Unique TurboNet™ flow path.

DRIPPER POSITION WITHIN THE DRIPPERLINE

• The water is drawn in to the dripper from the stream center, preventing the entrance of sediments in to the drippers.

FLEXIBLE TUBING

• Adapts to any planting area shape.

UV RESISTANT

• Withstands heat and direct sun - for on-surface installations.

SPECIFICATIONS

• Dripper flow rate: 2.3 l/h.
• Dripper spacing’s: 0.3, 0.5(other dripper spacing available upon request).
• Pressure-compensating range: 1.0-4.0 bar.
• Anti-drain mechanism, shut-off pressure 0.14 bar
• Anti-siphon mechanism.
• Recommended filtration: 130 micro / 120 mesh
• Bending radius: 18cm
• Colour:  Brown
