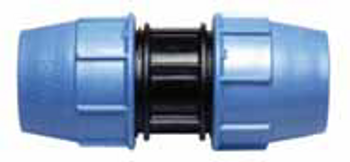

MDPE Compression Joiner Coupler
High quality compression fittings for low density and medium density polyethylene pipes (LDPE & MDPE pipes) for above and below ground use.
The compression fittings are WRAS approved for use on mains water systems.
The water pipe compression fittings in polypropylene ensure a perfect hydraulic seal in pressurised distribution systems including blue mains water supplies and pump water supplies.
The joining system consists of linking the polyethylene pipe by a clamping ring that surrounds and grips the pipe after the blue nut has been tightened.
Their technical features make these compression fittings extremely easy and rapid to install.
The range offers diameters from 20 mm to 110 mm with 16 bar nominal pressure.
The main components of the compression fittings are made of the following materials:
BODY: high-stability polypropylene (PP-B) with UV protection
GASKET: nitrile rubber (NBR)
BUSHING: high-stability polypropylene (PP-B) with UV protection
COUPLING RING: acetal resin (POM)
RING NUT: high-stability polypropylene (PP-B) with UV protection
