20mtr x 40mtr Indoor or Outdoor Riding Arena Watering Kit (4 valves)

Despatched within 3 to 5 days
Free Shipping
  • Equestrian Arena Menage Watering Irrigation System
  • Outdoor riding arena irrigation
  • 20mtr x 40mtr Indoor or Outdoor Riding Arena Watering Kit (4 valves)
  • Equestrian Arena Menage Watering Irrigation System
Inc. VAT

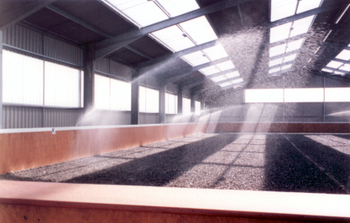

20 metre x 40 metre Indoor or Outdoor Riding Arena - watering in 4 sections

Supply one automatic on/off pump unit 1.0kW pump unit complete with non-return valve, manual isolator valve and polyethylene pipe connection.  Pump comes pre-assembled.

Supply polyethylene (PE) pipe which is to be installed from the pump unit to the arena and running behind the kickboards or fencing, forming a complete ring main.

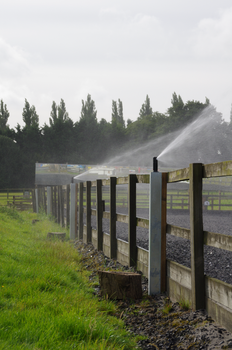

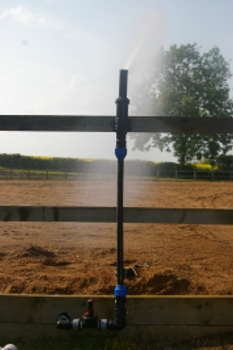

Tee off the PE pipe with eight solenoid valves and pipe to Toro pop-up sprinklers, which are to be placed behind the kick boards or fencing, and will pop-up above the boards when operating and retract back down when watering is finished.

The arena will water in four sections.

Supply one Hunter XC 4 station automatic controller.

Maximum outdoor size with this kit is 22 metre x 50 metre.  Maximum indoor size with this kit is 22 metre x 45 metre.

Each watering package contains;

  • Pump and controls
  • Pipework and fittings
  • Solenoid valve take offs including sprinklers
  • Drain point take offs to drain down during cold spells


Tank Option - Vertical Non-Potable Water Storage Tanks

These water tanks are made from a Medium Density Polyethylene  (MDPE). Non Potable.


PVC Water STorage Tank

Tanks come with positive tie down points for easy handling and positioning.

  • 1250 L – 30000 L Capacities
  • UV stabilized to withstand the elements
  • 450mm manhole access lid
  • Positive tie down points
  • Ribbed sides for extra strength
  • Potable water tanks available
  • Standard colour - Black
  • Outlet bulkhead fitting
Tank Capacity Dimensions
Diameter x height
Litres Gallons
700 155 700mm Dia x 2150mm H
2500 550 1400 dia x 1800 H
4000 881 1900 dia x 1875 H
5000 1101 1900 dia x 2185 H
10000 2202 2400 dia x 2500 H









Mains water fill float valve and pipe kit consists of;

  • 25 metres of 25mm Blue mains water pipe
  • 1 x compression stop cock
  • 1 x 25mm x drain point x 25mm compression tee
  • 4 x 25mm compression elbow
  • 3 x 25mm x ¾" compression adaptor
  • 1 x ¾" Double check valve
  • 1 x ¾" Polypropylene socket
  • 1 x ¾" Polypropylene M/F elbow 90
  • 1 x ¾" Ball valve assembly
  • 1 x ¾" Ball valve float
  • 2 metres of 25mm lagging for pipe above ground
