Calpeda GXR submersible pumps for drainage water

SKU:
CAL0100
Availability:
In Stock
Shipping:
Calculated at Checkout
On Sale
  • Automatic Version with Float Switch, 10m cable 230 Volt Single Phase
  • Manual Version with 10m cable 230 Volt Single Phase
  • Automatic Version with Magnetic Float Switch, 10m cable 230 Volt Single Phase
Now: £214.80
Inc. VAT
Was: £220.80
Now: £179.00
Ex. VAT
Was: £184.00

Description

Calpeda GXR Series Submersible Pump Unit

Layflat Hose
Jubilee Clip
Jubilee Clips

Description
Submersible pump for drainage of clean water, suitable for domestic applications such as collection from wells, small floods of cellars and in gardening.

Construction
Single- impeller submersible pumps in chrome- nickel stainless steel, with vertical delivery port.
GXR: with open impeller.
GXV: with free- flow (vortex ) impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12.7m and flow rates up to 220 litres/min.

Applications
GXR:    - For clean water containing solids up to 10 mm grain size.
- For draining rooms or emptying tanks.
- Extraction of water from ponds, streams or pits and for rain water collection.
- For irrigation purposes.
GXV:      - For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquids with a high solid content.
- For outdoor use a power supply cable of not less than  10m should be used in accordance with : EN60335-2-41.

Operating conditions
Liquid temperature up to 50°C.
Maximum immersion depth : 5m.
Minimum water level with float: GXR = 70mm, GXV = 130mm.
Minimum water level manual operation: GXR = 15mm, GXV = 30mm.
Continuous duty .

M = Single Phase 240 volt

1¼" Female BSP Outlet or 1¼" Hose fitting elbow

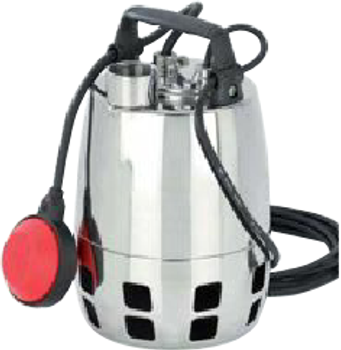

Automatic Version with Float Switch, 10m cable 230 Volt Single Phase
Code  Description  kW HP  Floating Particle Size
CAL0100  GXRM 9 Automatic 0.25 0.33 10mm
CAL0102  GXRM 11 Automatic 0.37 0.50 10mm
CAL0104  GXRM 13 Automatic 0.45 0.60 10mm

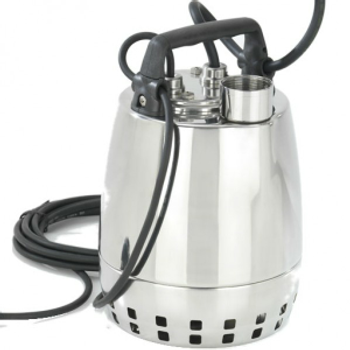

Manual Version with 10m cable 230 Volt Single Phase
CAL0120  GXRM 9 SG 0.25 0.33 10mm
CAL0122  GXRM 11 SG 0.37 0.50 10mm
CAL0124  GXRM 13 SG 0.45 0.60 10mm
Automatic Version with Magnetic Float Switch, 10m cable 230 Volt Single Phase
CAL0140  GXRM 9 GF 0.25 0.33 10mm
CAL0142  GXRM 11 GF 0.37 0.50 10mm
CAL0144  GXRM 13 GF 0.45 0.60 10mm





 Calpeda GXR & GXV PFD Brochure download
